How to Choose Window Frame Profiles for Overseas Engineering Projects

Window frame profile is the skeleton of the whole window system. No matter how good the glass and hardware are, poor frame structure will lead to excessive deflection, water leakage, and even safety hazards under wind load. Many overseas purchasers only compare prices and surface coating effects, ignoring profile wall thickness, cavity layout, material grade and thermal break structure. This article introduces key knowledge of aluminum window profiles, common types, core selection criteria and typical procurement traps, to help buyers pick suitable frame profiles for different overseas construction projects.

1. Basic Introduction of Aluminum Window Profiles

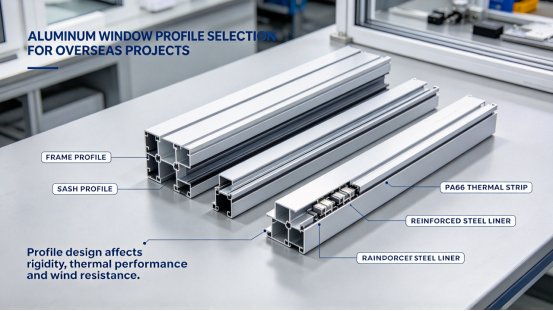

Aluminum alloy window profiles are extruded aluminum bars with customized cavities, cut and assembled into window frames. Different alloy grades, wall thickness and cavity designs bring huge differences in structural strength and thermal insulation. For ordinary low-rise inland buildings, simple single-cavity profiles may meet requirements. For high-rise buildings, coastal and typhoon zones, multi-cavity or reinforced profiles must be adopted. Thermal break aluminum profiles add PA66 nylon strips to separate inner and outer aluminum layers, reducing heat transfer and improving energy-saving performance, which is mandatory for energy-code-compliant projects in Europe and North America.

2. Core Indicators for Profile Selection

2.1 Alloy grade

The most common grade for architectural windows is 6063-T5. It balances extrusion performance, surface finish and structural strength. For projects requiring higher mechanical strength, 6063-T6 can be selected. Buyers should confirm alloy status in test reports instead of only checking appearance.

2.2 Wall thickness

Wall thickness directly determines the rigidity of the frame. Thicker walls resist bending better under wind pressure. Different countries have mandatory minimum thickness standards. For high-rise and typhoon-risk projects, the profile wall thickness needs to exceed the minimum standard and reserve safety margin. Thin-wall profiles are cheap but easy to deform under strong wind, which is a common low-cost trap.

2.3 Cavity structure

Multi-cavity design divides the aluminum section into multiple independent chambers. It disperses stress, improves overall stiffness and reduces deformation. Separate chambers can also drain condensed water and accommodate steel reinforcement. Single-cavity profiles have simple production processes but weaker rigidity, not suitable for large-size windows or high wind load areas.

2.4 Surface treatment

Main types: anodizing, powder coating, fluorocarbon coating.

· Anodizing: economical, good corrosion resistance for mild climate areas.

· Powder coating: rich colors, widely used in most residential and commercial projects.

· Fluorocarbon coating: superior UV and weather resistance, suitable for coastal areas with strong salt spray, long service life.

2.5 Thermal break (PA66 nylon strip)

For energy-saving projects, check whether the thermal strip is real PA66 with glass fiber. Some suppliers use cheap PVC strips instead. PVC will age, soften and fall off after several years, destroying thermal insulation and frame stability.

3. Profile Selection for Different Project Scenarios

1. Inland low-rise residential: standard 6063-T5, conventional wall thickness, thermal break optional according to local energy code.

2. High-rise buildings: thickened wall + multi-cavity structure, strict third-party mechanical test report required.

3. Coastal salt spray / typhoon regions: thick wall multi-cavity + fluorocarbon surface treatment, optional internal steel/aluminum reinforcement.

4. European & North American energy-saving projects: PA66 thermal break aluminum, need to meet local energy efficiency standards.

4. Common Procurement Pitfalls

1. Quote thin-wall profiles but verbally claim to meet high wind load requirements.

2. Replace PA66 thermal strips with cheap PVC thermal strips without notification.

3. Provide test reports of thick samples, but deliver thinner profiles for mass production.

4. Ignore salt spray corrosion resistance for seaside projects, only focus on structural strength.

5. Confuse alloy temper: T5 and T6 have obvious difference in mechanical property.

Final Remarks

The window profile determines the basic performance ceiling of the whole window. When selecting aluminum frames for overseas projects, purchasers need to combine building height, local wind load, climate (salt spray, ultraviolet) and building code requirements. Verify alloy grade, wall thickness, cavity design, surface treatment and thermal break material together with official test documents. Our aluminum window profiles can provide customized cross-section design and complete certification reports to match various overseas engineering requirements.
