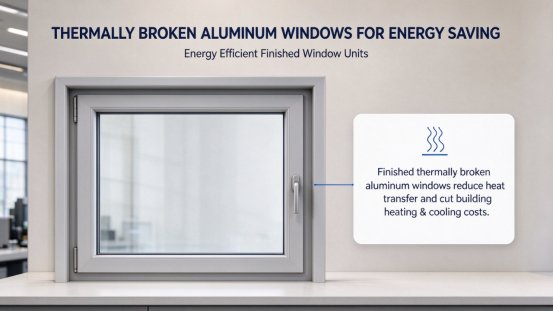

How Thermally Broken Aluminum Windows Cut Building Energy Costs

Energy consumption for heating and cooling accounts for a large proportion of building operating expenses. For commercial and residential projects across Europe, North America and Oceania, thermally broken aluminum windows have become a preferred solution to reduce long-term energy bills. This article focuses on finished thermally broken aluminum windows, explaining how this type of window reduces heat transfer, improves indoor comfort and satisfies modern building energy codes.

1. What Is A Thermally Broken Aluminum Window

A thermally broken aluminum window is a finished assembled window unit. A thermal barrier inside the window frame separates the exterior and interior aluminum parts. Without this barrier, aluminum quickly transfers heat between outside and inside. The thermal break blocks heat flow, so the finished window achieves much better thermal performance than standard aluminum windows.

This kind of complete window is widely used in new construction and renovation projects. It maintains the high strength, weather resistance and sleek appearance of aluminum, while solving the poor insulation problem of ordinary aluminum windows.

2. How These Windows Reduce Energy Loss

2.1 Block heat conduction through the window frame

In hot summers, outdoor heat will not easily transfer indoors through the window frame. In cold winters, indoor heat stays inside and will not escape outward via aluminum frames. This lowers the workload of air conditioning and heating systems.

2.2 Combine with insulated glass for better overall performance

Thermally broken windows are normally fitted with double or triple insulated Low-E glass as part of the finished window assembly. The thermal break frame plus insulated glass work together to lower the window U-value. Lower U-value means less heat passes through the whole window.

2.3 Reduce condensation on indoor window surfaces

Temperature difference between indoor and outdoor often creates condensation on ordinary aluminum windows. Thermally broken finished windows keep the inner frame surface temperature close to room temperature, minimizing condensation and protecting interior walls from moisture damage.

3. Core Benefits of Thermally Broken Aluminum Windows

1. Lower ongoing energy cost: Less heating and air conditioning consumption for the whole building over decades of service life.

2. Stable indoor comfort: Avoid cold spots near windows in winter and overheated window areas in summer.

3. Meet mandatory energy codes: Satisfy NFRC, CE and local energy requirements for new residential and commercial buildings.

4. Long service life: The complete aluminum window resists UV fading, rain and temperature cycling, with minimal routine maintenance.

5. Design flexibility: Finished windows can be made as casement, tilt-turn, sliding and fixed picture windows, available in custom colors and sizes.

4. Suitable Project Types

· Multi-family residential buildings

· Commercial offices, retail buildings

· Luxury villa new builds

· Window retrofit and replacement projects

· Passive house and green building projects

5. Common Misconceptions

❌ Misconception 1: Thermal break is just a simple sticker added to the window surface. The thermal break is built inside the whole finished window frame during manufacturing. It is an integrated part of the assembled window system, not an external add-on.

❌ Misconception 2: Any aluminum window with thermal break automatically has low U-value. The U-value of a finished window depends on frame structure, glass configuration, gaskets and sealing. Buyers must check the full window test report instead of only checking if thermal break exists.

❌ Misconception3: Thermally broken windows are only for cold climate. They also bring great value in hot regions. It blocks outdoor heat from entering buildings and reduces air conditioning load.

6. Procurement Checklist for Thermally Broken Windows

1. Request U-value test report for the fully assembled finished window.

2. Confirm glass type: double glazing, triple glazing or Low-E coating.

3. Verify the window can meet local building energy certification requirements.

4. Check water tightness and air permeability performance of the complete window.

5. Confirm powder coating finish and corrosion resistance for coastal or high UV areas.

Final Remarks

Thermally broken aluminum finished windows balance structural strength, visual design and thermal insulation. For overseas building projects, investing in high-performance complete windows cuts long-period energy expenditure and helps projects pass energy compliance audits. Our factory supplies custom thermally broken aluminum finished windows, with full performance test documentation for global residential and commercial construction projects.
