Wind Pressure Resistance Evaluation & Selection Guide for Windows in Overseas Construction Projects

When bidding or purchasing windows for overseas construction projects, wind pressure resistance is one of the most critical performance indicators that cannot be ignored. Many procurement teams only focus on thermal insulation, sound insulation and price during the procurement process, ignoring the local wind load requirements of the project site. Once the window cannot withstand strong winds, it will lead to serious consequences such as frame deformation, glass cracking, sash falling off, and even safety accidents. Such quality failures will bring huge compensation claims, project delays and irreversible damage to corporate reputation.

Different regions around the world have completely different wind load standards. Coastal areas, islands and typhoon-prone zones have much stricter requirements for window wind resistance compared with inland cities. For example, Southeast Asian coastal regions, parts of North America and Oceania are frequently hit by hurricanes or typhoons. Ordinary non-reinforced windows cannot survive extreme weather. Therefore, buyers must evaluate wind pressure resistance at the early stage of product selection and confirm compliance with local building codes.

This article will introduce the core knowledge of window wind pressure resistance, key evaluation parameters, influencing factors and practical selection tips, helping foreign trade purchasers correctly select qualified windows for overseas engineering projects.

1. What is Wind Pressure Resistance of Windows

Wind pressure resistance refers to the ability of the whole window to resist deformation, damage and failure under positive and negative wind load. Positive wind pressure pushes the window inward, while negative wind pressure (suction force) pulls the window outward, which is often more dangerous, especially for high-rise buildings.

This performance is tested in professional laboratories and graded according to international standards such as EN 12210 and ASTM E330. The test will continuously apply increasing wind load until the window reaches the limit state. The assessment focuses on three failure forms: permanent deformation of aluminum frame, glass breakage, and separation between sash and frame.

It is worth noting that wind pressure grade is not equal to the maximum wind speed. Buyers need to convert the local basic wind speed into design wind load, and also take into account building height, terrain, surrounding shelters and safety reserve coefficient. Many suppliers simply mark "typhoon resistant" on product brochures without providing formal test reports, which is a common marketing trap in the industry.

2. Key Factors That Determine Window Wind Pressure Resistance

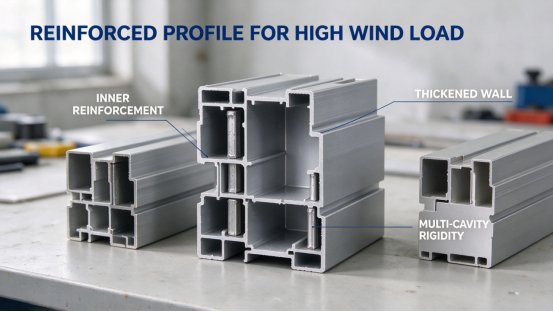

2.1 Aluminum profile wall thickness and cavity structure

The aluminum frame is the main bearing part of the window. Thicker wall thickness and multi-cavity reinforced profile greatly improve rigidity. Thin-walled profiles are easy to bend and deform under strong wind. For high-rise and typhoon areas, the profile wall thickness must meet or exceed the local code requirement. Multi-cavity structure can disperse wind force and reduce overall deformation, which is far better than simple single-cavity profiles.

2.2 Glass type, thickness and size

Large-size glass bears larger wind load. Thicker tempered glass or laminated glass can effectively avoid cracking under strong wind. In hurricane-prone areas, laminated safety glass is usually mandatory. Even if the glass breaks, the adhesive layer can hold the fragments in place and prevent broken glass from falling and hurting people.

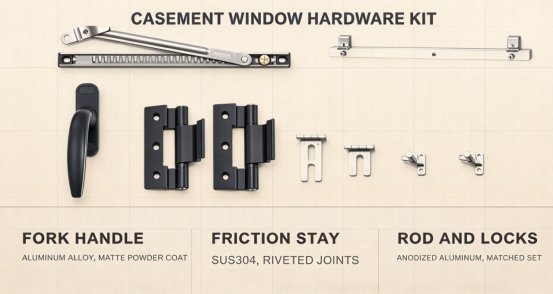

2.3 Hardware system and lock point layout

Hardware is responsible for fixing the sash onto the frame. Poor-quality hardware will fail under negative wind suction. More lock points evenly distributed on four sides of the window sash can share wind pressure, instead of only 2 lock points on the handle side. Reinforced friction stays and heavy-duty hinges are essential for large casement windows.

2.4 Reinforcement measures

For ultra-large windows or high wind load projects, internal steel or aluminum reinforcement can be added inside the profile cavity to further enhance structural stiffness. This customized reinforcement solution is often required for high-rise coastal projects.

3. Practical Selection Steps for Overseas Buyers

Step 1: Confirm the project location, building height and local building code. Obtain the official design wind load value from the architect. Do not rely on supplier’s oral description. Step 2: Request official third-party test reports. Check whether the tested wind pressure grade meets the required design load with sufficient safety margin. Step 3: Reasonably control the maximum sash size. Larger sash brings higher risk under wind load. If the customer insists on oversized windows, upgrade profile, glass and hardware accordingly. Step 4: Verify complete assembly solution. A good profile alone cannot guarantee wind resistance. Glass, lock points and hardware must be matched as a whole system. Step 5: Reserve safety redundancy. It is recommended to select a product with higher wind pressure grade than the calculated value, to cope with unexpected extreme weather and installation deviation on site.

4. Common Procurement Pitfalls

1. Suppliers claim "typhoon-proof windows" without test certificates.

2. Test report only applies to small-size samples, while the actual project uses much larger sash.

3. Using thick profile but thin glass and cheap hardware; the whole system is unbalanced.

4. Ignore negative wind suction force, which is the main cause of sash falling in coastal typhoon areas.

Final Remarks

Wind pressure resistance is a systematic performance of the whole window rather than a single component. When purchasing windows for overseas projects, purchasers should combine local meteorological data, building height and building code requirements, and verify test reports, profile structure, glass configuration and hardware matching comprehensively. Our broken bridge aluminum windows can provide customized wind-resistant solutions and complete test documents for high-rise, coastal and typhoon-risk projects around the world, helping you avoid structural safety risks in overseas construction projects.
